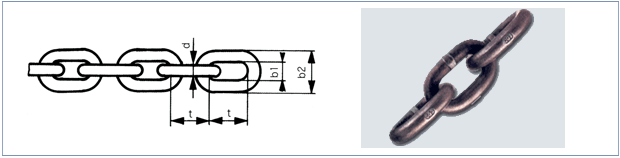

Nominal diameter
Pitch
Width
Working load
kg
safety factor
4
Breaking
force
kN
Weight
Kg/m
d
permissible
tolerance
t
permissible
tolerance
inner
b1
min
outer
b2
max
4
±0.16
12
±0.4
5.4
14.4
20.1
20.1
0.39
5
±0.2
16
±0.5-0.4
7.5
18.5
31.4
31.4
0.57
6
±0.24
18
±0.5
8
21.6
45.2
45.2
0.8
7
±0.28
21
±0.6
9.5
25.2
61.6
61.6
1.1
8
±0.32
24
±0.7
10.8
28.8
80.4
80.4
1.4
10
±0.4
30
±0.9
13.5
36
126
126
2.2
13
±0.52
39
±1.2
17.5
46.8
212
212
3.8
16
±0.64
48
±1.4
21.5
57.6
322
322
5.7
19
±1
57
±1.7
25.6
68.4
454
454
8.0
22
±1.1
66
±2
29.5
79.2
608
608
10.9
26
±1.3
78
±2.3
35
93.5
849
849
15.2
32
±1.6
96
±2.9
43.2
115
1290
1290
23.0

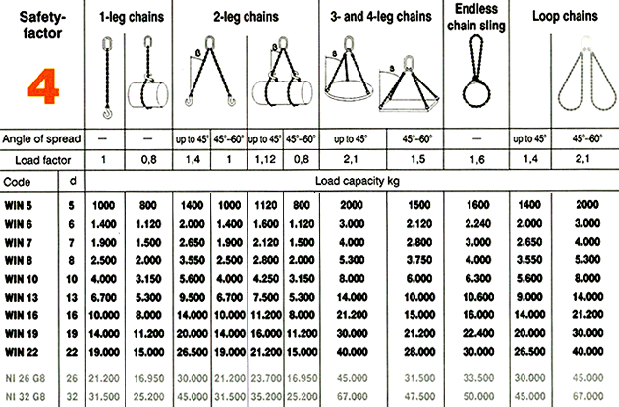

체인스링 (Chains Sling)
